A 3-D Secure 2.0 payment sequence may comprise the following distinct activities:

Versioning
- Request ACS and DS Protocol Version(s) that correspond to card account range as well as an optional 3-D Secure Method URL

3-D Secure Method
- Connect the cardholder browser to the issuer ACS to obtain additional browser data
Authentication
- Submit authentication request to the issuer ACS
Challenge
- Challenge the card holder if mandated
Authorization
- Authorize the authenticated transaction with the acquirer

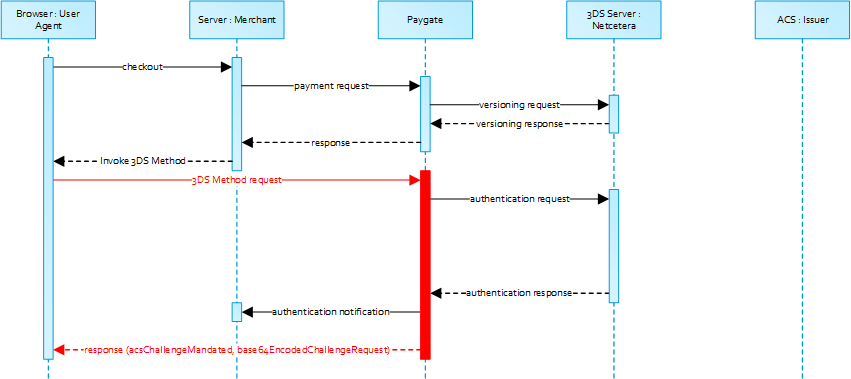

Server-2-Server Sequence Diagram

Multiexcerpt

MultiExcerptName	3DS2Short2

Multiexcerpt

MultiExcerptName	Server-2-Server Sequence Diagram
shouldDisplayInlineCommentsInIncludes	false

Server-2-Server Sequence Diagram

Info

Please note that the the communication between client and Access Control Server (ACS) is implemented through iframes. Thus, responses arrive in an HTML subdocument and you may establish correspondent event listeners in your root document.

Alternatively you could solely rely on asynchronous notifications delivered to your backend. In those cases you may have to consider methods such as long polling, SSE or websockets to update the client.

Table of Contents

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Link_EMV3DS
DisableCaching	true
PageWithExcerpt	Reuse API

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Link_APIPlayground
DisableCaching	true
PageWithExcerpt	Reuse API

Payment Initiation

Multiexcerpt

MultiExcerptName	3DS2Short3

The initial request to

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

will be the same regardless of the underlying 3-D Secure Protocol.

Multiexcerpt

MultiExcerptName	Payment Initiation
shouldDisplayInlineCommentsInIncludes	false

In order to start a server-to-server 3-D Secure card payment sequence please post the following key-value-pairs to

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	BaseURL
PageWithExcerpt	Wording

direct.aspx.

Call of interface: general parameters

Notice: For credit card payments with 3-D Secure, please note the different cases as explained separately in the chapter at the start of the handbook. If the credit card is registered for Verified or SecureCode or SafeKey, the next phase is divided into two steps of authentication and payment. However it always begins in the same way via the direct.aspx interface. The first response however is the receipt of Javascript code or other parameters in order to carry out a second call up of the direct3d.aspx interface. Only after that, do you receive the listed parameter as a response.

To carry out a credit card payment via a Server-to-Server connection, call please use the following URL:

Multiexcerpt include

SpaceWithExcerpt	ENWORKEN
MultiExcerptName	BaseURL
PageWithExcerpt	Wording

direct.aspx

Request Elements

Multiexcerpt include

SpaceWithExcerpt	ENWORKEN
MultiExcerptName	Request_Intro
PageWithExcerpt	Reuse API

Notice: In case of a merchant initiated recurring transaction the JSON objects (besides credentialOnFile and card), the URLNotify and TermURL are not mandatory parameters, because no 3-D Secure and no risk evaluation is done by the card issuing bank and the payment result is directly returned within the response.

Table Filter

default	Beschreibung
isFirstTimeEnter	false
hideColumns	true
sparkName	Sparkline
hidePane	true
datepattern	dd M yy
id	1640783050667_1204432564
worklog	365\|5\|8\|y w d h m\|y w d h m
isOR	AND
separator	Point (.)
order	0

Multiexcerpt

MultiExcerptName	request_elements

Table Transformer

dateFormat	dd M yy
export-word	false
show-source	false
export-csv	false
id	1640783050669_-1498353692
transpose	false
worklog	365\|5\|8\|y w d h m\|y w d h m
separator	.
export-pdf	false
sql	SELECT * FROM T*

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	MerchantID_REST
page	MerchantID
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	MsgVer_REST
page	msgver
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	TransID_REST
page	TransID
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	ReqId-ans..32_REST
page	ReqId
type	page

Kartensystemspezifische Transaktions-ID, die für nachfolgende Zahlungen mit hinterlegten Daten, verzögerte Autorisierungen und Wiedereinreichungen erforderlich ist.

Pflicht: CredentialOnFile – initial false – unschedule MIT / recurring

Key

REST

Format

CND

Description

Beschreibung

RefNr

"referenceNumber": "..."

O

Merchant’s unique reference number, which serves as payout reference in the acquirer EPA file. Please note, without the own shop reference delivery you cannot read out the EPA transaction and regarding the additional

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Partner-Name
PageWithExcerpt	Wording

settlement file (CTSF) we cannot add the additional payment data.

Details on supported format can be found below in payment specific section.

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	RefNr_Ascii
PageWithExcerpt	Reuse API

Eindeutige Referenznummer des Händlers, welche als Auszahlungsreferenz in der entsprechenden Acquirer EPA-Datei angegeben wird. Bitte beachten Sie, ohne die Übergabe einer eigenen Auszahlungsreferenz können Sie die EPA-Transaktionen nicht zuordnen, zusätzlich kann das

Multiexcerpt include

SpaceWithExcerpt	DE
MultiExcerptName	Partner-Name
PageWithExcerpt	DE:Wording

Settlement File (CTSF) auch nicht zusätzlich angereichert werden.

Informationen zum unterstützten Format finden Sie weiter unten in der zahlartspezifischen Beschreibung.

schemeReferenceID

ans..64

C

Card scheme specific transaction ID required for subsequent credential-on-file payments, delayed authorizations and resubmissions.

Mandatory: CredentialOnFile – initial false – unscheduled MIT / recurring

Multiexcerpt include

SpaceWithExcerpt	DE
MultiExcerptName	RefNr_Ascii
PageWithExcerpt	DE:Reuse API

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	schemeReferenceID_REST
page	schemeReferenceID
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	industrySpecificTxType_REST
page	industrySpecificTxType
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	Amount_REST
page	Amount
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	Currency_REST
page	Currency
type	page

Key	REST	Format	CND	Description	Beschreibung
card	"payment": {"card": JSON}	JSON	M	Card data	Kartendaten

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	Capture_REST
page	Capture
type	page

billingDescriptor wurdepriorAuthenticationInfo

Key	REST	Format	CND	Description	Beschreibung
billingDescriptor	"billing": {"addressInfo": { "descriptor": "..." }}		ans..22	O	A descriptor to be printed on a card holder’s statement. Please also refer to the additional comments made elsewhere for more information about rules and regulations.	Ein auf dem Kontoauszug des Karteninhabers zu druckender Beschreiber. Beachten Sie bitte auch die andernorts gemachten zusätzlichen Hinweise für weitere Informationen über Regeln und Vorschriften.
OrderDesc	"order": {"description": "..."}	ans..768	O	Order description	Beschreibung der Bestellung
AccVerify	"payment": {"card": { "accountVerification": "..." }}	a3	O	Indicator to request an account verification (aka zero value authorization). If an account verification is requested the submitted amount will be optional and ignored for the actual payment transaction (e.g. authorization). Values accepted: `Yes`	Indikator zur Anforderung einer Konto-Verifizierung (alias Nullwert-Autorisierung). Wenn eine Konto-Verifizierung angefordert wird, ist der übermittelte Betrag optional und wird für die tatsächliche Zahlungstransaktion (d.h. Autorisierung) ignoriert. Zulässige Werte: `Yes`
threeDSPolicy	"payment": {"card": { "threeDsPolicy": JSON }}	JSON	O	Object specifying authentication policies and exemption handling strategies	Objekt, dass die Authentisierungs-Richtlinien und Strategien zur Behandlung von Ausnahmen angibt
threeDSData	"payment": {"card": { "threeDSData": JSON }}	JSON	C	Object detailing authentication data in case authentication was performed through a third party or by the merchant	Objekt mit Details der Authentisierungsdaten, falls die Authentisierung durch Dritte oder durch den Händler durchgeführt	wurde
priorAuthenticationInfo	"payment": {"card": { "priorAuthenticationInfo": JSON }}		JSON	O	Prior Transaction Authentication Information contains optional information about a 3-D Secure cardholder authentication that occurred prior to the current transaction	Das Objekt Prior Transaction Authentication Information enthält optionale Informationen über eine 3-D Secure-Authentisierung eines Karteninhabers, die vor der aktuellen Transaktion erfolgt ist
browserInfo	"browserInfo": JSON	JSON	C	Accurate browser information are needed to deliver an optimized user experience. Required for 3-D Secure 2.0 transactions.	Exakte Browserinformationen sind nötig, um eine optimierte Nutzererfahrung zu liefern. Erforderlich für 3-D Secure 2.0 Transaktionen.
accountInfo	"accountInfo": JSON	JSON	O	The account information contains optional information about the customer account with the merchant. Optional for 3-D Secure 2.0 transactions.	Die Kontoinformationen enthalten optionale Informationen über das Kundenkonto beim Händler
billToCustomer	"billing": JSON	JSON	C	The customer that is getting billed for the goods and / or services. Required unless market or regional mandate restricts sending this information.	Der Kunde, dem die Waren und / oder Dienstleistungen in Rechnung gestellt werden. Erforderlich, sofern nicht Markt- oder regionale Mandate das Senden dieser Informationen beschränken.
shipToCustomer	"shipping": JSON	JSON	C	The customer that the goods and / or services are sent to. Required (if available and different from billToCustomer) unless market or regional mandate restricts sending this information.	Der Kunde, an den die Waren und / oder Dienstleistungen gesendet werden. Erforderlich (falls verfügbar und von billToCustomer abweichend), sofern nicht Markt- oder regionale Mandate das Senden dieser Informationen beschränken.
billingAddress	"billing": {"addressInfo": JSON}	JSON	C	Billing address. Required for 3-D Secure 2.0 (if available) unless market or regional mandate restricts sending this information.	Rechnungsadresse. Erforderlich für 3-D Secure 2.0 (falls verfügbar), sofern nicht Markt- oder regionale Mandate das Senden dieser Informationen beschränken.
shippingAddress	"shipping": {"addressInfo": JSON}	JSON	C	Shipping address. If different from billingAddress, required for 3-D Secure 2.0 (if available) unless market or regional mandate restricts sending this information.	Lieferadresse. Falls abweichend von billingAddress, erforderlich für 3-D Secure 2.0 (falls verfügbar), sofern nicht Markt- oder regionale Mandate das Senden dieser Informationen beschränken.
credentialOnFile	"credentialOnFile": JSON	JSON	C	Object specifying type and series of transactions using payment account credentials (e.g. account number or payment token) that is stored by a merchant to process future purchases for a customer. Required if applicable.	Objekt, dass Art und Reihe der Transaktionen angibt, die unter Verwendung von beim Händler hinterlegten Zahlungsdaten (z.B. Kontonummer oder Zahlungs-Token) zur Verarbeitung künftiger Käufe eines Kunden erfolgen. Erforderlich, falls zutreffend.
merchantRiskIndicator	"riskIndicator": JSON	JSON	O	The Merchant Risk Indicator contains optional information about the specific purchase by the customer	Der Händler-Risikoindikator enthält optionale Informationen über den bestimmten Einkauf des Kunden
subMerchantPF	"subMerchantPaymentFacilitator": JSON	JSON	O	Object specifying SubMerchant (Payment Facilitator) details Only supported by SafeCharge	Objekt, das die Details des SubMerchant (Payment Facilitator) angibt Wird ausschließlich von SafeCharge unterstützt.

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	TermURLTermURLCC_REST
page	TermURL
type	page

Table Excerpt

isFirstTimeEnter	true
static	true
v	2
name	URLNotifyURLNotifyCC_REST
page	URLNotify
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	UserData_REST
page	UserData
type	page

Table Excerpt Include

isFirstTimeEnter	true
static	true
v	2
name	MAC_REST
page	MAC
type	page

General parameters for credit card payments via socket connection

Please note the additional parameter for a specific credit card integration in the section "Specific parameters"

Response Elements (authentication)

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	RestResponse_IntroURL
PageWithExcerpt	Reuse API

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Response_Intro
PageWithExcerpt	Reuse API

Table Filter

default	Beschreibung
isFirstTimeEnter	false
hideColumns	true
sparkName	Sparkline
hidePane	true
datepattern	dd M yy
id	1640783050671_-1200718893
worklog	365\|5\|8\|y w d h m\|y w d h m
isOR	AND
separator	Point (.)
order	0

Multiexcerpt

MultiExcerptName	response_elements

Table Transformer

dateFormat	dd M yy
export-word	false
show-source	false
export-csv	false
id	1640783050672_-872780111
transpose	false
worklog	365\|5\|8\|y w d h m\|y w d h m
separator	.
export-pdf	false
sql	SELECT * FROM T*

Table Excerpt Include

static	true
name	MID
page	mid
type	page

Table Excerpt Include

static	true
name	PayID
page	PayID
type	page

Table Excerpt Include

static	true
name	XID
page	XID
type	page

Table Excerpt Include

static	true
name	TransID
page	TransID
type	page

Key Format CND Description Beschreibung

refnr O Reference number as given in request. Referenznummer wie im Request angegeben.

Status

a..20

M

Status of the transaction.

Values accepted:

AUTHENTICATION_REQUEST
PENDING
FAILED

Status der Transaktion.

Zulässige Werte:

AUTHENTICATION_REQUEST
PENDING
FAILED

Table Excerpt Include

static	true
name	Description
page	Description
type	page

Table Excerpt Include

static	true
name	Code
page	Code
type	page

Table Excerpt Include

static	true
name	UserData
page	UserData
type	page

Key	Format	CND	Description	Beschreibung
card	JSON	M	Card data	Kartendaten
versioningdata	JSON	M	The Card Range Data data element contains information that indicates the most recent EMV 3-D Secure version supported by the ACS that hosts that card range. It also may optionally contain the ACS URL for the 3-D Secure Method if supported by the ACS and the DS Start and End Protocol Versions which support the card range.	Das Datenelement Card Range Data enthält Informationen, welche die jüngste vom ACS, der den Kartenbereich hostet, unterstützte EMV 3-D Secure-Version angeben. Es kann optional auch die ACS URL für die 3-D Secure Methode enthalten, falls vom ACS unterstützt, sowie die DS Start- und End-Protokoll-Versionen, die den Kartenbereich unterstützen.
threeDSLegacy	JSON	C	Object containing the data elements required to construct the Payer Authentication request in case of a fallback to 3-D Secure 1.0.	Objekt, dass die erforderlichen Datenelemente für die Konstruktion der Anfrage zur Zahler-Authentisierung im Falle eines Fallbacks auf 3-D Secure 1.0 enthält.

versioningData

The versioningData object will indicate the EMV 3-D Secure protocol versions (i.e. 2.1.0 or higher) that are supported by Access Control Server of the issuer.

If the corresponding protocol version fields are NULL it means that the BIN range of card issuer is not registered for 3-D Secure 2.0 and a fallback to 3-D Secure 1.0 is required for transactions that are within the scope of PSD2 SCA.

When parsing versioningData please also refer to the subelement errorDetails which will specify the reason if some fields are not pupoluated (e.g. Invalid cardholder account number passed, not available card range data, failure in encoding/serialization of the 3-D Secure Method data etc).

BASEURL=

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	BaseURL
PageWithExcerpt	Wording

Multiexcerpt

MultiExcerptName	versioningdata

Code Block

language	json
linenumbers	true

{
	"threeDSServerTransID": "14dd844c-b0fc-4dfe-8635-366fbf43468c",
	"acsStartProtocolVersion": "2.1.0",
	"acsEndProtocolVersion": "2.1.0",
	"dsStartProtocolVersion": "2.1.0",
	"dsEndProtocolVersion": "2.1.0",
	"threeDSMethodURL": "http://www.acs.com/script",
	"threeDSMethodDataForm": "eyJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIjoiaHR0cHM6Ly93d3cuY29tcHV0b3AtcGF5Z2F0ZS5jb20vY2JUaHJlZURTLmFzcHg_YWN0aW9uPW10aGROdGZuIiwidGhyZWVEU1NlcnZlclRyYW5zSUQiOiIxNGRkODQ0Yy1iMGZjLTRkZmUtODYzNS0zNjZmYmY0MzQ2OGMifQ==",
	"threeDSMethodData": {
		"threeDSMethodNotificationURL": "BASEURL/cbThreeDS.aspx?action=mthdNtfn",
		"threeDSServerTransID": "14dd844c-b0fc-4dfe-8635-366fbf43468c"
	}
}

3-D Secure Method

The 3-D Secure Method allows for additional browser information to be gathered by an ACS prior to receipt of the authentication request message (AReq) to help facilitate the transaction risk assessment. Support of 3-D Secure Method is optional and at the discretion of the issuer.

The versioningData object contains a value for threeDSMethodURL . The merchant is supposed to invoke the 3-D Secure Method via a hidden HTML iframe in the cardholder browser and send a form with a field named threeDSMethodData via HTTP POST to the ACS 3-D Secure Method URL.

3-D Secure Method: `threeDSMethodURL`

Multiexcerpt

MultiExcerptName	threeDSMethodURL
shouldDisplayInlineCommentsInIncludes	false

Please note that the threeDSMethodURL will be populated by

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

if the issuer does not support the 3-D Secure Method. The 3-D Secure Method Form Post as outlined below must be performed independently from whether it is supported by the issuer. This is necessary to facilitate direct communication between the browser and

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

in case of a mandated challenge or a frictionless flow.

3-D Secure Method: No issuer `threeDSMethodURL`

Multiexcerpt

MultiExcerptName	No issuer threeDSMethodURL
shouldDisplayInlineCommentsInIncludes	false

3-D Secure Method Form Post

Multiexcerpt

MultiExcerptName	3ds_method

Code Block

language	xml
linenumbers	true

<form name="frm" method="POST" action="Rendering URL">
    <input type="hidden" name="threeDSMethodData" value="eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6IjNhYzdjYWE3LWFhNDItMjY2My03OTFiLTJhYzA1YTU0MmM0YSIsInRocmVlRFNNZXRob2ROb3RpZmljYXRpb25VUkwiOiJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIn0">
</form>

The ACS will interact with the Cardholder browser via the HTML iframe and then store the applicable values with the 3-D Secure Server Transaction ID for use when the subsequent authentication message is received containing the same 3-D Secure Server Transaction ID.

Info

title	Netcetera 3DS Web SDK

You may use the operations init3DSMethod or createIframeAndInit3DSMethod at your discreation from the nca3DSWebSDK in order to iniatiate the 3-D Secure Method. Please refer to the Integration Manual at https://mpi.netcetera.com/3dsserver/doc/current/integration.html#Web_Service_API.

Once the 3-D Secure Method is concluded the ACS will instruct the cardholder browser through the iFrame response document to submit threeDSMethodData as a hidden form field to the 3-D Secure Method Notification URL.

ACS Response Document

Multiexcerpt

MultiExcerptName	acs_response

Code Block

language	xml
linenumbers	true

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8"/>
    <title>Identifying...</title>
</head>
<body>
<script>
    var tdsMethodNotificationValue = 'eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6ImUxYzFlYmViLTc0ZTgtNDNiMi1iMzg1LTJlNjdkMWFhY2ZhMiJ9';

    var form = document.createElement("form");
    form.setAttribute("method", "post");
    form.setAttribute("action", "notification URL");

    addParameter(form, "threeDSMethodData", tdsMethodNotificationValue);

    document.body.appendChild(form);
    form.submit();

    function addParameter(form, key, value) {
        var hiddenField = document.createElement("input");
        hiddenField.setAttribute("type", "hidden");
        hiddenField.setAttribute("name", key);
        hiddenField.setAttribute("value", value);
        form.appendChild(hiddenField);
    }
</script>
</body>
</html>

3-D Secure Method Notification Form

Multiexcerpt

MultiExcerptName	3ds_method_notification_form

Code Block

language	xml
linenumbers	true

<form name="frm" method="POST" action="3DS Method Notification URL">
    <input type="hidden" name="threeDSMethodData" value="eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6ImUxYzFlYmViLTc0ZTgtNDNiMi1iMzg1LTJlNjdkMWFhY2ZhMiJ9">
</form>

Note

Please note that the threeDSMethodNotificationURL as embedded in the Base64 encoded threeDSMethodData value points to

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

and must not be modified. The merchant notification is delivered to the URLNotify as provided in the original request or as configured for the MerchantID in

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

.

Authentication

If 3-D Secure Method is supported by the issuer ACS and was invoked by the merchant

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

will automatically continue with the authentication request once the 3-D Secure Method has completed (i.e. 3-D Secure Method Notification).

The authentication result will be transferred via HTTP POST to the URLNotify . It may indicate that the Cardholder has been authenticated, or that further cardholder interaction (i.e. challenge) is required to complete the authentication.

In case a cardholder challenge is deemed necessary

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

will transfer a JSON object within the body of HTTP browser response with the elements acsChallengeMandated , challengeRequest , base64EncodedChallengeRequest and acsURL . Otherwise, in a frictionless flow,

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

will automatically continue and respond to the cardholder browser once the authorization completed.

Cardholder Challenge: Browser Response

Multiexcerpt

MultiExcerptName	Challenge - Browser Response
shouldDisplayInlineCommentsInIncludes	false

Browser Challenge Response

Data Elements

Table Filter

default	Beschreibung
isFirstTimeEnter	false
hideColumns	true
sparkName	Sparkline
hidePane	true
datepattern	dd M yy
id	1640783050673_1475503702
worklog	365\|5\|8\|y w d h m\|y w d h m
isOR	AND
separator	Point (.)
order	0

Multiexcerpt

MultiExcerptName	challenge_response

Table Transformer

dateFormat	dd M yy
export-word	false
show-source	false
export-csv	false
id	1640783050674_1368690112
transpose	false
worklog	365\|5\|8\|y w d h m\|y w d h m
separator	.
export-pdf	false
sql	SELECT * FROM T*

Key	Format	CND	Description	Beschreibung
acsChallengeMandated	boolean	M	Indication of whether a challenge is required for the transaction to be authorised due to local/regional mandates or other variable: true → Challenge is mandated by local/regional regulations false → Challenge is not mandated by local/regional regulations, but is deemed necessary by the ACS	Zeigt an, on eine Challenge für die Autorisierung einer Transaktion wegen lokaler/regionaler Vorschriften oder anderer Variablen nötig ist: true → Challenge ist obligatorisch wegen lokaler/regional Vorschriften false → Challenge ist nicht obligatorisch wegen lokaler/regional Vorschriften, wird aber von ACS als nötig angesehen
challengeRequest	object	M	Challenge request object	Objekt Challenge-Anfrage
base64EncodedChallengeRequest	string	M	Base64-encoded Challenge Request object	Base64-codiertes Objekt Challenge-Anfrage
acsURL	string	M	Fully qualified URL of the ACS to be used to post the Challenge Request	Vollständige URL des ACS, die für das Posten der Challenge-Anfrage verwendet werden soll

Schema: Browser Challenge Response

Multiexcerpt

MultiExcerptName	schema

Code Block

language	json
linenumbers	true

{
	"$schema": "http://json-schema.org/draft-07/schema#",
	"type": "object",
	"properties": {
		"acsChallengeMandated": {"type": "boolean"},
		"challengeRequest": {"type": "object"},
		"base64EncodedChallengeRequest": {"type": "string"},
		"acsURL": {"type": "string"}
	},
	"required": ["acsChallengeMandated", "challengeRequest", "base64EncodedChallengeRequest", "acsURL"],
	"additionalProperties": false
}

Sample: Browser Challenge Response

Multiexcerpt

MultiExcerptName	sample

Code Block

language	json
linenumbers	true

{
	"acsChallengeMandated": false,
	"challengeRequest": {
		"threeDSServerTransID": "8a880dc0-d2d2-4067-bcb1-b08d1690b26e",
		"acsTransID": "d7c1ee99-9478-44a6-b1f2-391e29c6b340",
		"messageType": "CReq",
		"messageVersion": "2.1.0",
		"challengeWindowSize": "01",
		"messageExtension": [
			{
				"name": "emvcomsgextInChallenge",
				"id": "tc8Qtm465Ln1FX0nZprA",
				"criticalityIndicator": false,
				"data": "messageExtensionDataInChallenge"
			}
		]
	},
	"base64EncodedChallengeRequest": "base64-encoded-challenge-request",
	"acsURL": "acsURL-to-post-challenge-request"
}

Authentication Notification

The data elements of the authentication notification are listed in the table below.

Table Filter

default	Beschreibung
isFirstTimeEnter	false
hideColumns	true
sparkName	Sparkline
hidePane	true
datepattern	dd M yy
id	1640783050675_1949489413
worklog	365\|5\|8\|y w d h m\|y w d h m
isOR	AND
separator	Point (.)
order	0

Multiexcerpt

MultiExcerptName	authentification_notification

Table Transformer

dateFormat	dd M yy
export-word	false
show-source	false
export-csv	false
id	1640783050676_1086794018
transpose	false
worklog	365\|5\|8\|y w d h m\|y w d h m
separator	.
export-pdf	false
sql	SELECT * FROM T*

Table Excerpt Include

static	true
name	MID
page	mid
type	page

Table Excerpt Include

static	true
name	PayID
page	PayID
type	page

Table Excerpt Include

static	true
name	TransID
page	TransID
type	page

Table Excerpt Include

static	true
name	Code
page	Code
type	page

Table Excerpt Include

static	true
name	MAC
page	MAC
type	page

Key	Format	CND	Description	Beschreibung
authenticationResponse	JSON	M	Response object in return of the authentication request with the ACS	Antwort-Objekt als Rückgabe zur Authentisierungs-Anfrage beim ACS

Browser Challenge

If a challenge is deemed necessary (see challengeRequest) the browser challenge will occur within the cardholder browser. To create a challenge it is required to post the value base64EncodedChallengeRequest via an HTML iframe to the ACS URL.

Challenge Request

Multiexcerpt

MultiExcerptName	challenge_request

Code Block

language	xml
linenumbers	true

<form name="challengeRequestForm" method="post" action="acsChallengeURL">
	<input type="hidden" name="creq" value="ewogICAgInRocmVlRFNTZXJ2ZXJUcmFuc0lEIjogIjhhODgwZGMwLWQyZDItNDA2Ny1iY2IxLWIwOGQxNjkwYjI2ZSIsCiAgICAiYWNzVHJhbnNJRCI6ICJkN2MxZWU5OS05NDc4LTQ0YTYtYjFmMi0zOTFlMjljNmIzNDAiLAogICAgIm1lc3NhZ2VUeXBlIjogIkNSZXEiLAogICAgIm1lc3NhZ2VWZXJzaW9uIjogIjIuMS4wIiwKICAgICJjaGFsbGVuZ2VXaW5kb3dTaXplIjogIjAxIiwKICAgICJtZXNzYWdlRXh0ZW5zaW9uIjogWwoJCXsKCQkJIm5hbWUiOiAiZW12Y29tc2dleHRJbkNoYWxsZW5nZSIsCgkJCSJpZCI6ICJ0YzhRdG00NjVMbjFGWDBuWnByQSIsCgkJCSJjcml0aWNhbGl0eUluZGljYXRvciI6IGZhbHNlLAoJCQkiZGF0YSI6ICJtZXNzYWdlRXh0ZW5zaW9uRGF0YUluQ2hhbGxlbmdlIgoJCX0KICAgIF0KfQ==">
</form>

You may use the operations init3DSChallengeRequest or createIFrameAndInit3DSChallengeRequest from the nca3DSWebSDK in order submit the challenge message through the cardholder browser.

Init 3-D Secure Challenge Request - Example

Multiexcerpt

MultiExcerptName	init_challenge_request

Code Block

language	xml
linenumbers	true

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <script src="nca-3ds-web-sdk.js" type="text/javascript"></script>
    <title>Init 3-D Secure Challenge Request - Example</title>
</head>
<body>
<!-- This example will show how to initiate Challenge Reqeuests for different window sizes. -->
<div id="frameContainer01"></div>
<div id="frameContainer02"></div>
<div id="frameContainer03"></div>
<div id="frameContainer04"></div>
<div id="frameContainer05"></div>
<iframe id="iframeContainerFull" name="iframeContainerFull" width="100%" height="100%"></iframe>

<script type="text/javascript">
    // Load all containers
    iFrameContainerFull = document.getElementById('iframeContainerFull');
    container01 = document.getElementById('frameContainer01');
    container02 = document.getElementById('frameContainer02');
    container03 = document.getElementById('frameContainer03');
    container04 = document.getElementById('frameContainer04');
    container05 = document.getElementById('frameContainer05');


    // nca3DSWebSDK.init3DSChallengeRequest(acsUrl, creqData, container);
    nca3DSWebSDK.init3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', iFrameContainerFull);

    // nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest(acsUrl, creqData, challengeWindowSize, frameName, rootContainer, callbackWhenLoaded);
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '01', 'threeDSCReq01', container01);
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '02', 'threeDSCReq02', container02);
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '03', 'threeDSCReq03', container03);
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '04', 'threeDSCReq04', container04);
    nca3DSWebSDK.createIFrameAndInit3DSChallengeRequest('http://example.com', 'base64-encoded-challenge-request', '05', 'threeDSCReq05', container05, () => {
        console.log('Iframe loaded, form created and submitted');
    });
</script>

</body>
</html>

Once the cardholder challenge is completed, was cancelled or timed out the ACS will instruct the browser to post the results to the notfication URL as specified in the challenge request and to send a Result Request (RReq) via the Directory Server to the 3-D Secure Server.

Note

Please note that the notification URL submited in the challenge request points to

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

and must not be changed.

Authorization

After successful cardholder authentication or proof of attempted authentication/verification is provided

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

will automatically continue with the payment authorization.

In case the cardholder authentication was not successful or proof proof of attempted authentication/verification can not be provided

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Name
PageWithExcerpt	Wording

will not continue with an authorization request.

In both cases

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	Platform-Kurz
PageWithExcerpt	Wording

will deliver a notification with the authentication result to the merchant specified URLNotify with the data elements as listed in the table below.

Payment Notification

the data elements as listed in the table below.

Payment Notification

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	RestResponse_IntroURL
PageWithExcerpt	Reuse API

Multiexcerpt include

SpaceWithExcerpt	EN
MultiExcerptName	KvpResponse_IntroURL
PageWithExcerpt	Reuse API

Table Filter

default	Beschreibung
isFirstTimeEnter	false
hideColumns	true
sparkName	Sparkline
hidePane	true
datepattern	dd M yy
id	1640783050677_-1425358255
worklog	365\|5\|8\|y w d h m\|y w d h m
isOR	AND
separator	Point (.)
order	0

Multiexcerpt

MultiExcerptName	payment_notification

Table Transformer

dateFormat	dd M yy
export-word	false
show-source	false
export-csv	false
id	1640783050679_-174924123
transpose	false
worklog	365\|5\|8\|y w d h m\|y w d h m
separator	.
export-pdf	false
sql	SELECT * FROM T*

Table Excerpt Include

static	true
name	MID
page	mid
type	page

Table Excerpt Include

static	true
name	MsgVer
page	msgver
type	page

Table Excerpt Include

static	true
name	PayID
page	PayID
type	page

Table Excerpt Include

static	true
name	XID
page	XID
type	page

Table Excerpt Include

static	true
name	TransID
page	TransID
type	page

Table Excerpt Include

static	true
name	schemeReferenceID
page	schemeReferenceID
type	page

Kartensystemspezifische Transaktions-ID, die für nachfolgende Zahlungen mit hinterlegten Daten, verzögerte Autorisierungen und Wiedereinreichungen erforderlich ist

Key	Format	CND	Description	Beschreibung
Key	Format	CND	Description	Beschreibung
schemeReferenceID	ans..64	C	Card scheme specific transaction ID required for subsequent credential-on-file payments, delayed authorizations and resubmissions.
TrxTime	an21	M	Transaction time stamp in format DD.MM.YYYY HH:mm:ssff	Zeitstempel der Transaktion im Format DD.MM.YYYY HH:mm:ssff
Status	a..20	M	Status of the transaction. Values accepted: `Authorized` `OK` (Sale) `PENDING` `FAILED` In case of Authentication-only the Status will be either `OK` or `FAILED` .	Status der Transaktion. Zulässige Werte: `Authorized` `OK` (Sale) `PENDING` `FAILED` Im Falle von nur Authentisierung ist der Status entweder `OK` oder `FAILED` .

Table Excerpt Include

static	true
name	Description
page	Description
type	page

Table Excerpt Include

static	true
name	Code
page	Code
type	page

Table Excerpt Include

static	true
name	MAC
page	MAC
type	page

Key	Format	CND	Description	Beschreibung
card	JSON	M	Card data	Kartendaten
ipinfo	JSON	O	Object containing IP information	Objekt mit IP-Informationen
threedsdata	JSON	M	Authentication data	Authentisierungsdaten
resultsresponse	JSON	C	In case the authentication process included a cardholder challenge additional information about the challenge result will be provided.	Falls der Authentisierungsprozess eine Challenge des Karteninhabers enthalten hat, werden zusätzliche Informationen über das Ergebnis der Challenge bereitgestellt
externalPaymentData	JSON	O	Optional additional data from acquirer/issuer/3rd party for authorization.	Optionale Daten des Acquirers/Issuers/externen Dienstleisters für eine Autorisierung

Table Excerpt Include

static	true
name	PCNr
page	PCNr
type	page

Browser Payment Response

Additionally the JSON formatted data elements as listed below are transferred in the HTTP response body to the cardholder browser. Please note that the data elements (i.e. MID , Len , Data ) are base64 encoded.

Data Elements

Table Filter

default	Beschreibung
isFirstTimeEnter	false
hideColumns	true
sparkName	Sparkline
hidePane	true
datepattern	dd M yy
id	1640783050680_-40409341
worklog	365\|5\|8\|y w d h m\|y w d h m
isOR	AND
separator	Point (.)
order	0

Multiexcerpt

MultiExcerptName	payment_response

Table Transformer

dateFormat	dd M yy
export-word	false
show-source	false
export-csv	false
id	1640783050681_-2117094745
transpose	false
worklog	365\|5\|8\|y w d h m\|y w d h m
separator	.
export-pdf	false
sql	SELECT * FROM T*

Table Excerpt Include

static	true
name	MID
page	mid
type	page

Key	Format	CND	Description	Beschreibung
Len	integer	M	Length of the unencrypted `Data` string	Länge des unverschlüsselten Strings `Data`
Data	string	M	Blowfish encrypted string containing a JSON object with `MID` , `PayID` and `TransID`	Blowfish-verschlüsselter String, der ein JSON-Objekt mit `MID` , `PayID` und `TransID` enthält

Schema

Multiexcerpt

MultiExcerptName	response_schema

Code Block

language	json
linenumbers	true

{
	"$schema": "http://json-schema.org/draft-07/schema#",
	"type": "object",
	"properties": {
		"MID": {
			"type": "string"
		},
		"Len": {
			"type": "integer"
		},
		"Data": {
			"type": "string"
		}
	},
	"required": ["MID", "Len", "Data"],
	"additionalProperties": false
}

Merchants are supposed to forward these data elements to their server for decryption and mapping agianst the payment notification. Based on the payment results the merchant server may deliver an appropriate response to the cardholder browser (e.g. success page).

Decrypted Data

Table Filter

default	Beschreibung
isFirstTimeEnter	false
hideColumns	true
sparkName	Sparkline
hidePane	true
datepattern	dd M yy
id	1640783050682_1987237582
worklog	365\|5\|8\|y w d h m\|y w d h m
isOR	AND
separator	Point (.)
order	0

Multiexcerpt

MultiExcerptName	decrypted_data

Table Transformer

dateFormat	dd M yy
export-word	false
show-source	false
export-csv	false
id	1640783050683_-1436104910
transpose	false
worklog	365\|5\|8\|y w d h m\|y w d h m
separator	.
export-pdf	false
sql	SELECT * FROM T*

Table Excerpt Include

static	true
name	MID
page	mid
type	page

Table Excerpt Include

static	true
name	PayID
page	PayID
type	page

Table Excerpt Include

static	true
name	TransID
page	TransID
type	page

Sample decrypted Data

Multiexcerpt

MultiExcerptName	sample_decrypted_data

Code Block

language	xml
linenumbers	true

MID=YourMID&PayID=PayIDassignedbyPlatform&TransID=YourTransID

Page tree

Versions Compared

Old Version 1

New Version Current

Key

Card processing - Server-2-Server integration

Server-2-Server Sequence Diagram

Payment Initiation

Call of interface: general parameters

Request Elements

Response Elements (authentication)

versioningData

3-D Secure Method

3-D Secure Method: `threeDSMethodURL`

3-D Secure Method: No issuer `threeDSMethodURL`

3-D Secure Method Form Post

ACS Response Document

3-D Secure Method Notification Form

Authentication

Cardholder Challenge: Browser Response

Browser Challenge Response

Data Elements

Schema: Browser Challenge Response

Sample: Browser Challenge Response

Authentication Notification

Browser Challenge

Challenge Request

Init 3-D Secure Challenge Request - Example

Authorization

Payment Notification

Browser Payment Response

Data Elements

Schema

Decrypted Data

Sample decrypted Data

Help

Intranet Tools

Page tree

Page History

Versions Compared

Old Version 1

New Version Current

Key

Card processing - Server-2-Server integration

Server-2-Server Sequence Diagram

Payment Initiation

Call of interface: general parameters

Request Elements

Response Elements (authentication)

versioningData

3-D Secure Method

3-D Secure Method: threeDSMethodURL

3-D Secure Method: No issuer threeDSMethodURL

3-D Secure Method Form Post

ACS Response Document

3-D Secure Method Notification Form

Authentication

Cardholder Challenge: Browser Response

Browser Challenge Response

Data Elements

Schema: Browser Challenge Response

Sample: Browser Challenge Response

Authentication Notification

Browser Challenge

Challenge Request

Init 3-D Secure Challenge Request - Example

Authorization

Payment Notification

Browser Payment Response

Data Elements

Schema

Decrypted Data

Sample decrypted Data

3-D Secure Method: `threeDSMethodURL`

3-D Secure Method: No issuer `threeDSMethodURL`
